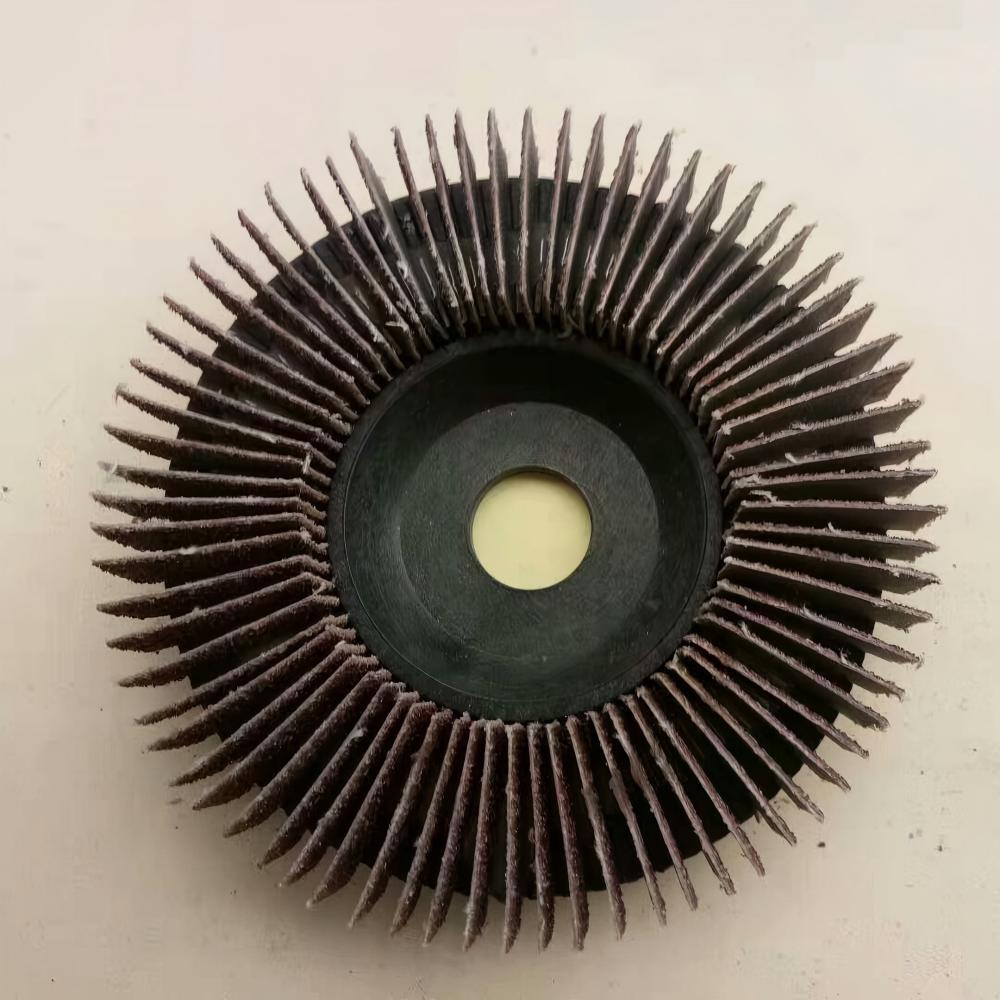

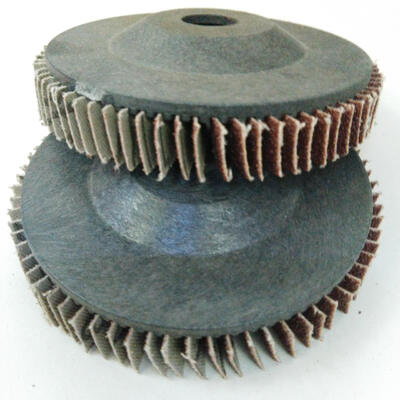

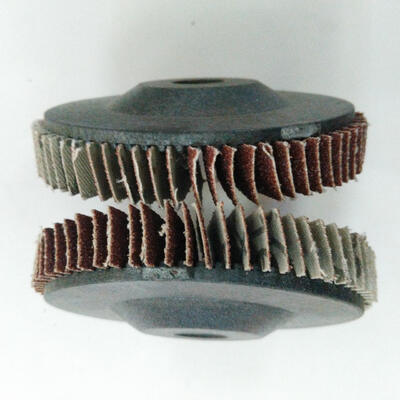

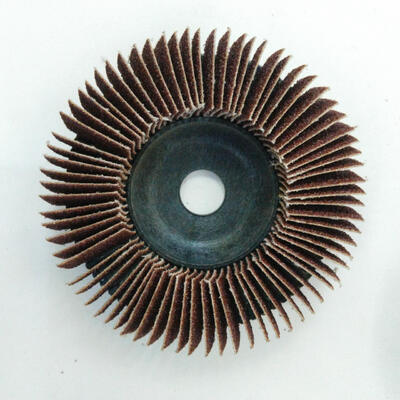

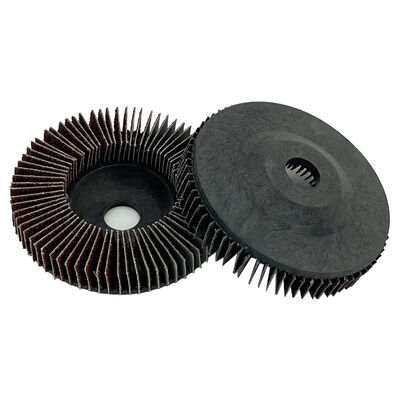

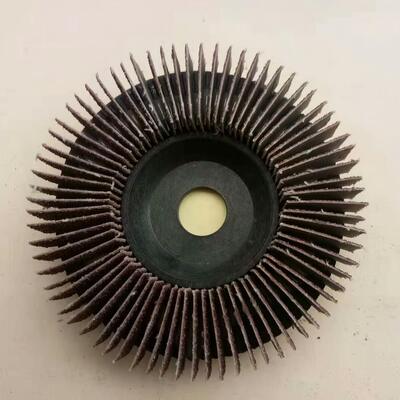

Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom

Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom

  • Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom
  • Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom
  • Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom
  • Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom
  • Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom
  • Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom
Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom
Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 0.1
Delivery Time: 5-8days
Contact Now
Detailed Product Description
Grit: 40#~120# Compatibletools: Angle Grinder
Thickness: 7/8 Inch (22 Mm) Color: Brown / Blue / Green
Type: Normal Or With Vent Safetystandards: EN 13743, ANSI B7.1
Glue: Flap Wheel Special Glue Working Style: Surface Grinding
Discdiameter: 4.5 Inches (115 Mm) Bondtype: Resin Bond
Packing: Wooden Case Sample: Sample Provided
Backing: Fiberglass Backing Advantage: High Working Efficiency
Highlight:

Custom 40 grit flap wheel

,

Aluminium Oxide 40 grit flap wheel

,

320 Grit curved flap disc

wholesale high quality manufacture custom Vertical Flap disc Aluminium Oxide 80/120/180/240/320 grit abrasive flap disc for polishing metal stainless steal





Parameter Description
Product Name Vertical Flap Disc (Flap Wheel)
Cover Type Mesh Cover / Plastic Cover
Material Calcined Emery Cloth (Red / Black / Blue Sand)
Number of Flaps Customizable
Zirconia Alumina Sand Cloth Blue Sand
Maximum Rotational Speed 15300 RPM (80 M/S)
Ceramic Alumina Yes
Suitable for Metal / Stainless Steel / Woodworking, etc.
Product Size 100X16MM (4 Inches)
Grit Range 40# ~ 400#
Packaging Data 20 pcs / heat-sealed film, 200 pcs / carton, 16 KG / carton, 51X41X21 CM

Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom 0

Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom 1

FAQ

Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom 2

Curved 320 Grit 40 Grit Flap Wheel Disc Aluminium Oxide For Metal Custom 3




FAQ

Q1: What is a flap disc, and what is it used for?
A: A flap disc is an abrasive tool used for blending, finishing, and light grinding of surfaces. It is commonly used on metals (including stainless steel), wood, and other materials to achieve a smooth, clean finish.


Q2: What are the differences between the available materials (Calcined Emery, Zirconia Alumina, Ceramic Alumina)?
A:

  • Calcined Emery (Red/Black/Blue Sand): Durable and cost-effective, suitable for general-purpose grinding and finishing.
  • Zirconia Alumina (Blue Sand): Offers higher durability and faster cutting action, ideal for tough materials like stainless steel.
  • Ceramic Alumina: Provides excellent longevity and cooler grinding, reducing the risk of burning the workpiece. It is often used for high-performance applications.



Q3: What is the maximum safe operating speed for these flap discs?

A: The maximum safe rotational speed is 15300 RPM, which corresponds to a maximum peripheral speed of 80 M/S. Always ensure your tool’s speed does not exceed this limit for safe operation.


Q4: Can I customize the number of flaps in the flap disc?
A: Yes, the number of flaps can be customized according to your specific application needs. More flaps generally provide a finer finish, while fewer flaps offer more aggressive material removal.


Q5: What sizes and grits are available?
A:

  • Size: 100x16mm (4 inches)

  • Grit Range: Available from 40# (coarse) to 400# (fine). Choose a coarser grit for material removal and a finer grit for finishing and polishing.





Q6: What types of covers are available, and how do I choose?
A: Two cover types are available:

  • Mesh Cover: Provides better airflow and cooling, reducing heat buildup.

  • Plastic Cover: Offers more protection against flap separation and is often used in applications where debris control is important.

Select based on your cooling needs and safety preferences.



Q7: What materials can these flap discs be used on?
A: These discs are suitable for a wide range of materials, including:

  • Metals (steel, aluminum, stainless steel)

  • Wood

  • Plastics and composites

Always test on a small area if unsure.

Q8: How are the flap discs packaged?
A: The packaging is as follows:

  • 20 pieces per heat-sealed film

  • 200 pieces per carton

  • Carton weight: 16 kg

  • Carton dimensions: 51 x 41 x 21 cm


Q9: How do I store and handle flap discs?
A:

  • Store in a dry, cool place away from direct sunlight and moisture.

  • Handle with care to avoid bending or damaging the flaps.

  • Always inspect the disc before use for any signs of damage.

  • Q10: What safety precautions should I take when using flap discs?
    A:

    • Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and a face shield.

    • Ensure the tool is compatible with the disc’s maximum speed rating.

    • Do not apply excessive pressure—let the disc do the work.

    • Follow all manufacturer guidelines and local safety regulations.


    For further questions or customization requests, please contact our customer support team.
