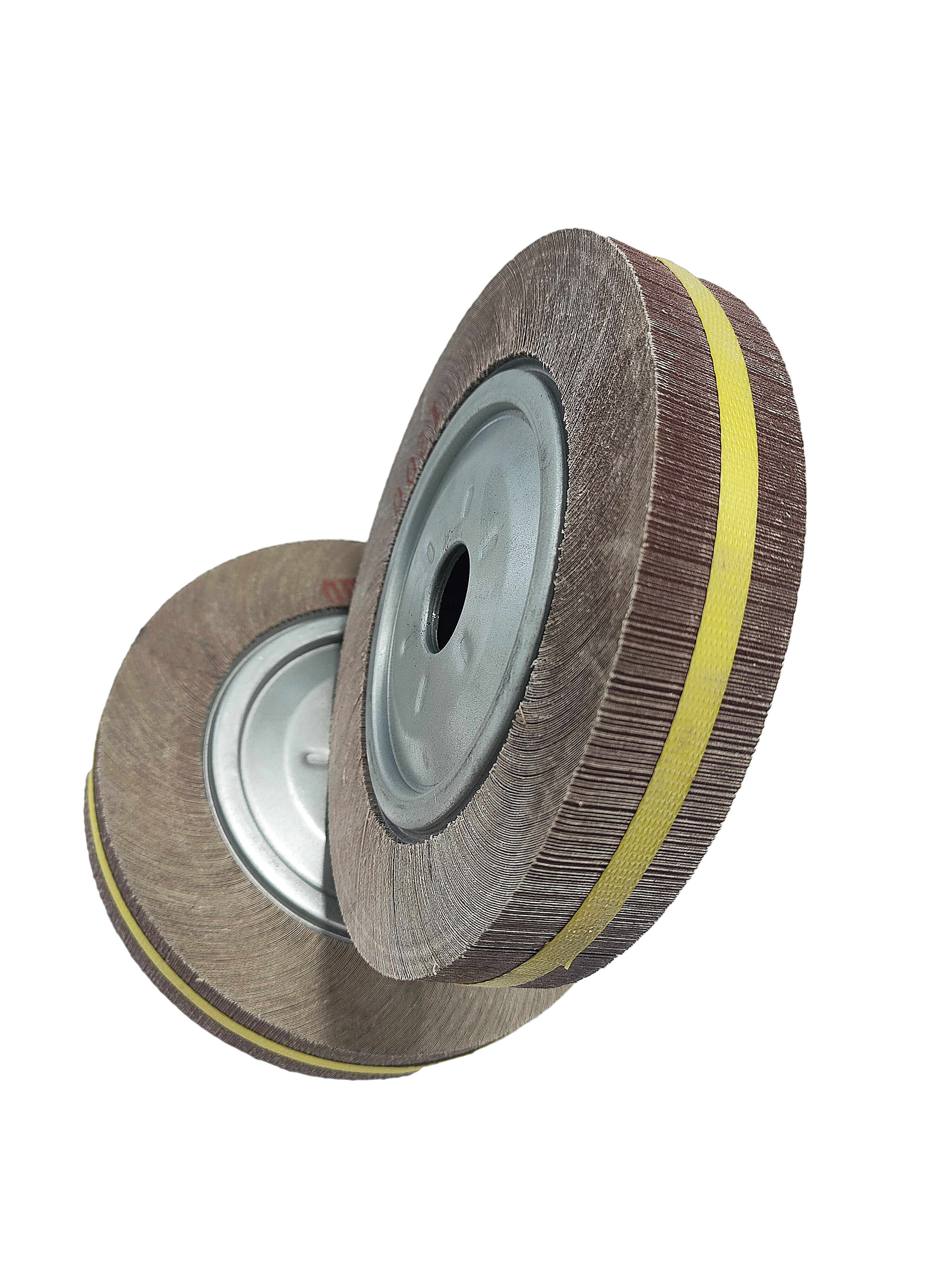

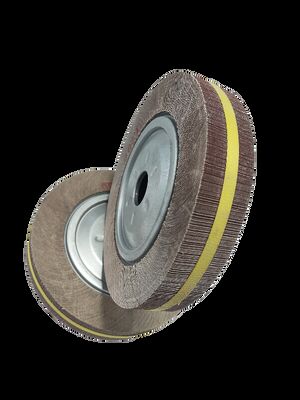

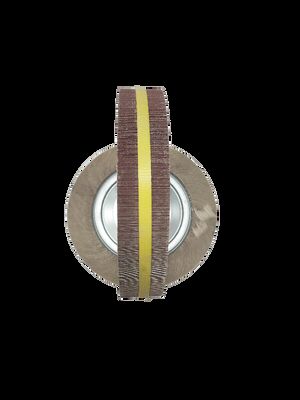

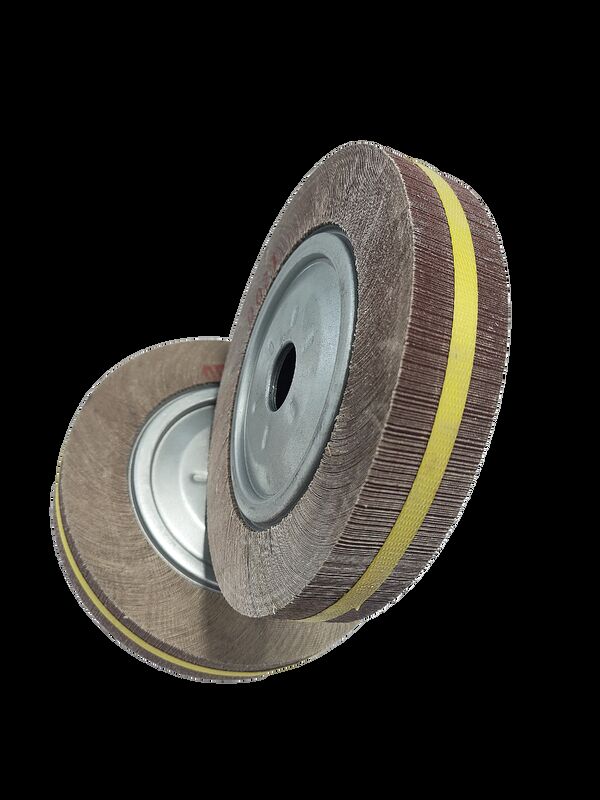

Name: Aluminum Oxide Abrasive Die Grinder Flap Wheel 120 Grit P40-P320 ODM
Brand: Zhengzhou Jiading Abrasive Manufacturing Co., Ltd.
SKU: flap wheel
Price: 1.5 USD
Availability: InStock

Home Products Abrasive Flap Wheel

Aluminum Oxide Abrasive Die Grinder Flap Wheel 120 Grit P40-P320 ODM

Product Details:

Place of Origin:	henan china
Brand Name:	jiading
Model Number:	flap wheel

Payment & Shipping Terms:

Minimum Order Quantity:	100pieces
Price:	USD1.5/pieces
Packaging Details:	20pcs/carton
Delivery Time:	10-15days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	100pcs/day

Contact Now

Detailed Product Description

Grit:	P40-P320	Type:	Surface Grinding Wheel
Application:	Grinding, Deburring, Polishing	Compatiblematerials:	Metal, Wood, Plastic
Mountingtype:	Arbor Mounted	Thickness:	25 Mm
Durability:	High	Wheeldiameter:	150 Mm
Abrasive Material:	Aluminum Oxide	Color:	Brown
Productname:	Abrasive Flap Wheel	Bondtype:	Resin
Highlight:	ODM die grinder flap wheel , P320 die grinder flap wheel , ODM 120 grit flap disc

150x25x16mm Abrasive Flap Wheel | Full Grit Range 60-400 for Grinding & Finishing on Metal & Wood

Product Overview

Achieve a seamless transition from aggressive grinding to a mirror-smooth finish with our 150x25x16mm Abrasive Flap Wheel. Engineered for versatility and efficiency, this wheel features overlapping abrasive flaps that provide a flexible, consistent cutting action, conforming perfectly to complex contours and surfaces. Available in a comprehensive grit range from coarse 60 to ultra-fine 400, it is the ultimate all-in-one solution for welders, metal fabricators, and woodworkers seeking to streamline their workflow and achieve professional results on every project.

Key Features & Benefits

Complete Grit Spectrum for a Full Workflow: Available from 60 to 400 grit. Eliminates the need for multiple discs or wheels. Start with coarse grits (60-120) for rapid stock removal and weld leveling, progress to medium (180-240) for blending, and finish with fine grits (320-400) for a ready-to-polish surface.
Consistent & Flexible Cutting Action: The multiple overlapping flaps wear evenly and flex upon contact. Provides a uniform finish without gouging or creating deep scratches, effortlessly conforming to curves, corners, and irregular shapes that rigid grinders cannot handle.
Durable Aluminum Oxide Abrasive: The premium abrasive grain offers an excellent balance of cutting speed and service life. Ensures fast material removal on metals like steel and aluminum, as well as hardwoods, while providing long-lasting performance that reduces changeover frequency and cost.
High-Speed Reinforced Hub: The robust 16mm aluminum core and reinforced construction. Withstands high RPM on angle grinders and bench grinders without disintegrating, ensuring safety and stability during demanding operations.
Versatile 150x25x16mm Size: The standard 150mm (6") diameter with a 16mm bore. Offers an ideal working surface area and fits a wide range of standard industrial grinders, making it a versatile and essential workshop consumable.

Product Specifications

Product Type	Abrasive Flap Wheel

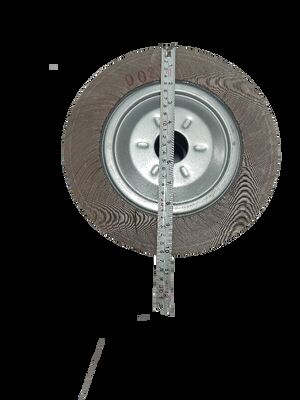

Outer Diameter (OD)	150 mm (6 Inches)
Inner Diameter (Bore)	16 mm (5/8")

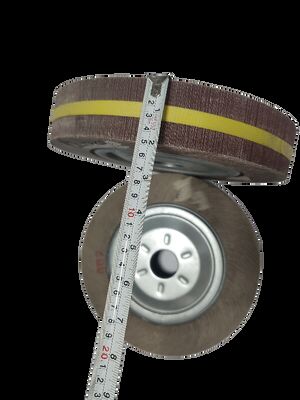

Thickness / Width	25 mm
Abrasive Material	Aluminum Oxide
Grit Available	60, 80, 100, 120, 180, 240, 320, 400
Max. Operating Speed	75 m/s

Other Available Sizes

Out Diameter Size	150mm, 180mm, 200mm, 250mm, 300mm, 350mm
Thickness	15mm, 20mm, 25mm, 30mm, 40mm, 45mm, 50mm, 60mm, 80mm
Inner Hole	25.4MM, 31mm, 75mm, M14 Threaded

Intended Use & Applications

This versatile flap wheel is engineered for a wide range of material removal and finishing tasks:

Metal Fabrication: Weld seam blending, deburring, edge rounding, and surface preparation on steel, stainless steel, and aluminum.
Woodworking: Shaping, contouring, and smoothing wood surfaces, especially on carved or curved pieces.
Automotive & Marine: Perfect for bodywork repair, rust removal, and surface finishing.
General Maintenance & Repair: Ideal for cleaning and refurbishing surfaces in various industrial settings.
Perfect For: Welders, metalworkers, fabrication shops, woodshops, and maintenance crews.

Important Precautions

CHECK MAX RPM & TOOL COMPATIBILITY: NEVER exceed the maximum operating speed (75 m/s) marked on the wheel. Ensure your grinder's RPM rating and spindle size (16mm) are compatible.

Wear Mandatory PPE: ALWAYS wear safety goggles, a face shield, hearing protection, heavy-duty gloves, and a respirator. The process generates significant dust and debris.
Inspect Wheel Before Use: Do not use if the wheel is damaged, the flaps are torn, or if it has been dropped. Perform a visual and ring test (tap gently; it should ring clearly).
Apply Correct Technique: Use a light, consistent pressure and keep the wheel moving across the surface. Do not force it into the workpiece or use the side of the wheel.
Secure Workpiece & Use Guard: Always ensure the workpiece is firmly secured and that the grinder's guard is properly installed and oriented towards the operator.
